RKAWP

Aluminum Pontoon Trailers
Spring Axles

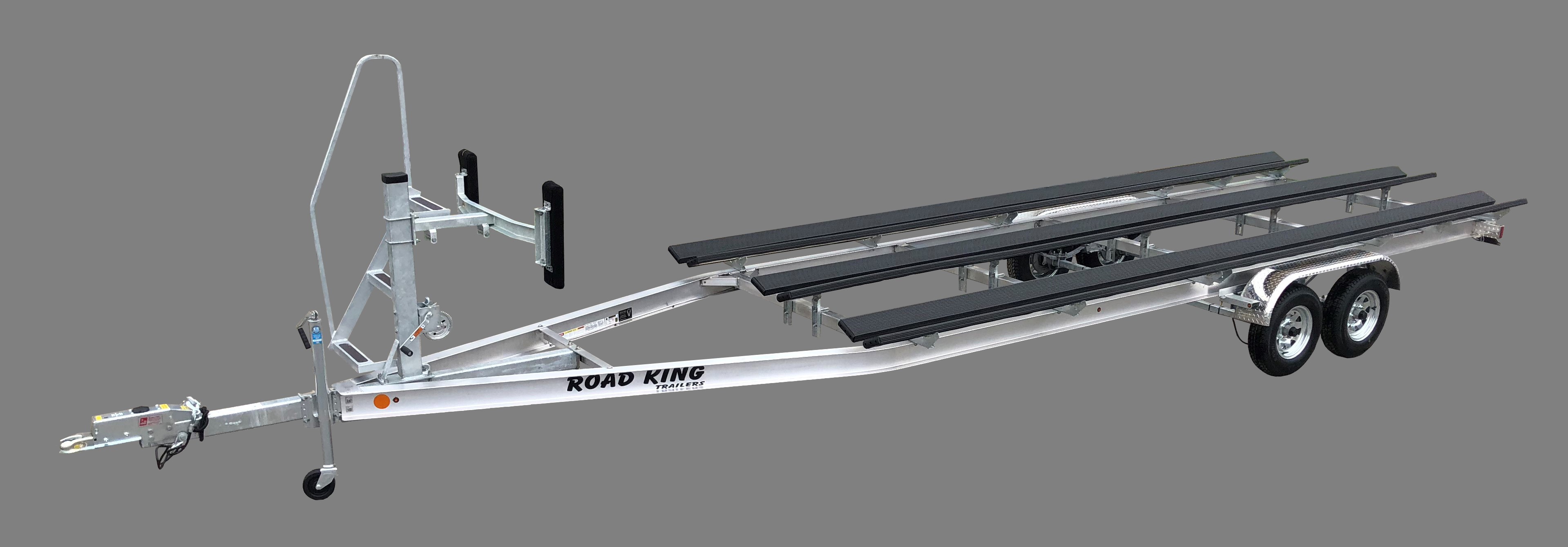

*Tandem Axle Model RKAWP 24-26TB (Shown With Optional Tri-Toon Conversion)*



Standard Features

*Spring Axle Suspension*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Aluminum I-Beam Welded Frame & Cross Members*
*Galvanized U-Bolts & Hardware*
*Galvanized Axles & Wheels*
*Aluminum Diamond Plate Fenders*
*LED Lights / Heat Shrink Connections*
*Adjustable 2X6 Bunk Boards With Poly Bunk Skid*
*Heavy Duty "Wide" Bow Stop*
*Front Boaring Ladder with Handle*
*Heavy Duty Tongue Jack & Wheel*

Trailer Model Frame Width
& Size		 Tire Size GVW Net Carrying Capacity
RKAWP 18-20 76" / 4.5 185X13D 3400 LB 2700 LB
RKAWP 18-20B 76" / 4.5 185X13D 3400 LB 2700 LB
RKAWP 18-20T 76" / 4.5 175X13C 3995 LB 3200 LB
RKAWP 18-20TB 76" / 4.5 175X13C 5400 LB 4600 LB
RKAWP 20-22T 76" / 5.5 175X13C 3995 LB 3200 LB
RKAWP 20-22TB 76" / 5.5 175X13C 5400 LB 4500 LB
RKAWP 20-22TB 76" / 5.5 185X13D 6840 LB 5840 LB
RKAWP 22-24T 76" / 5.5 175X13C 3995 LB 3000 LB
RKAWP 22-24TB 76" / 5.5 175X13C 5400 LB 4400 LB
RKAWP 22-24TB 76" / 5.5 185X13D 6840 LB 5840 LB
RKAWP 24-26TB 76" / 5.5 175X13C 5400 LB 4300 LB
RKAWP 24-26TB 76" / 5.5 185X13D 6840 LB 5740 LB
RKAWP 26-28TB 76" / 6.5 185X13D 6840 LB 5640 LB

T= Tandem Axle,   TR= Tri Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.



Optional Equipment & Upgrades

*Torsion "V" Axles With Vortex Hubs (Only Available for 8' 6" Beam Boats)*
*Tri-toon Conversion*
*"Extended Rear" Tri-toon Bracket*
*Inside PVC Guides*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
