RKA

Aluminum Jon Boat Trailers
Spring Axles

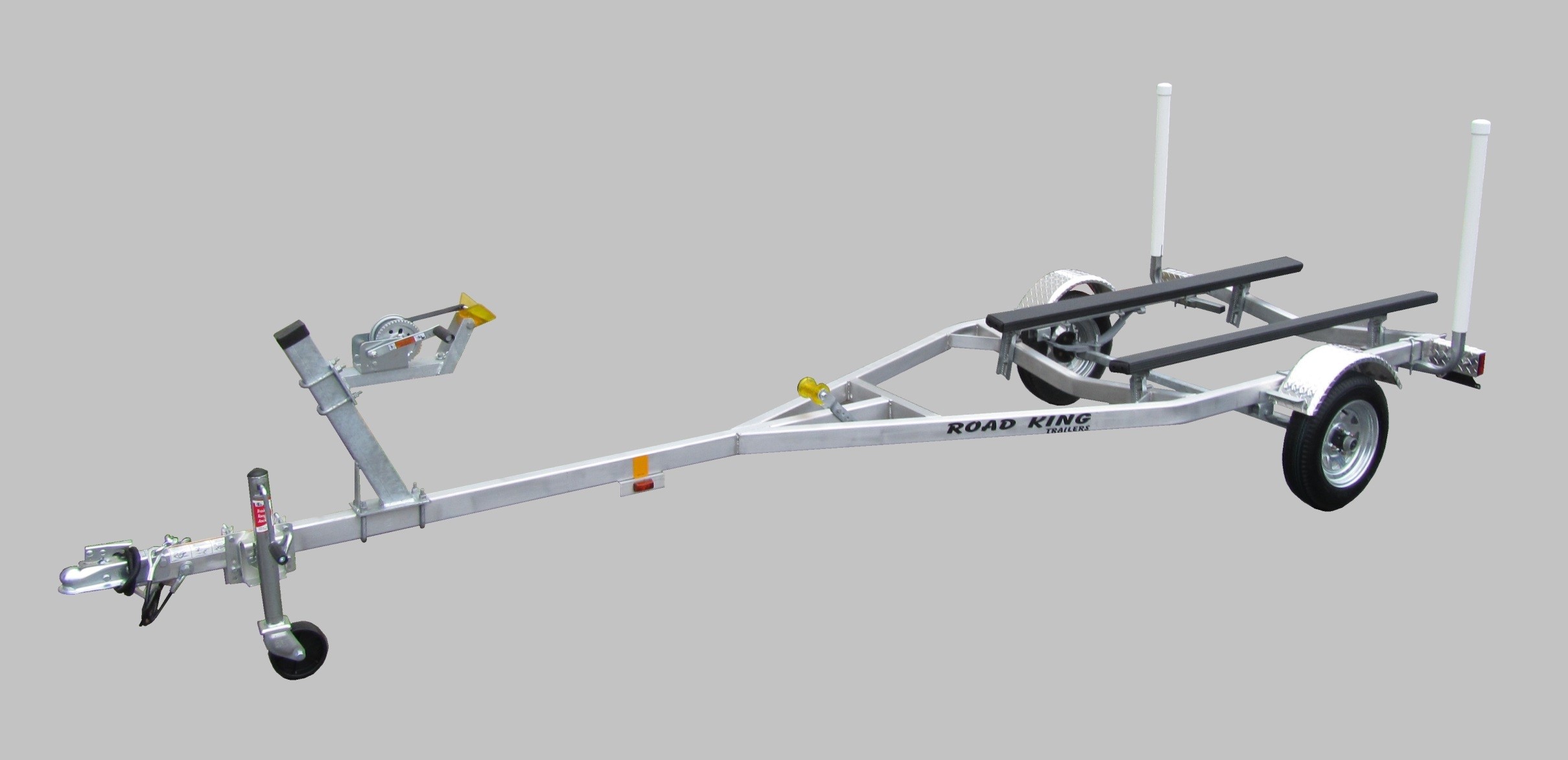

*RKA 14V (Shown With Optional Bunk Skid & PVC Guides)*



Standard Features

*Spring Axle Suspension With Super Lube Hubs*
*2X3 Tube Aluminum Welded Frame*
*Adjustable 2X4 Flat Bunks*
*Adjustable Roller On Tongues*
*Galvanized Axles & Wheels*
*V-Frame Crossmembers (Flat Frame Available Upon Request)
*LED Lights / Heat Shrink Connections*
*Aluminum Diamond Plate Fenders*
*Carpeted Fender Boards (13"C tires only)
*Swivel Jack
*Vortex Hubs on 13 LRC Tires Only (6 Year Maintenance Free Warranty)
*Galvanized U-Bolts & Hardware*

Trailer Model Frame Width
& Size		 Tire Size GVW Net Carrying Capacity
RKA 14V 48" / 3 4.80X12B 1560 LB 1200 LB
RKA 16V 48" / 3 4.80X12B 1560 LB 1200 LB
RKA 16WV 60" / 3 4.80X12B 1560 LB 1200 LB
RKA 16WV 60" / 3 175X13C 2000 LB 1600 LB
RKA 18WV 60" / 3 4.80X12B 1560 LB 1200 LB
RKA 18WV 60" / 3 175X13C  2000 LB 1600 LB
NOTE: We Suggest Poly Bunk Skid On Bunks On All Aluminum Hull Boats To Prevent Electrolysis



Optional Equipment & Upgrades

*Side Guides (PVC)*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Poly Bunk Skid on Bunks*
*X2: 5" Adjustable Rollers on Each Cross Member*
