Parts Catalog


Hydraulic Brake Actuators


Make sure fluid level is always approximately 3/8” below top of the reservoir. Use only DOT 3 brake fluid. Trailers that are equipped with “disc brakes” require a 5-prong trailer harness. The 5th wire is red in color and is to be hooked up to the back-up lights of the towing vehicle. This allows the trailer to be backed up freely without damaging the trailer brakes. Failure to hook up this wire could result in brake system failure (blown pistons). A 5-prong wire harness is the safest way to assure proper connection. Aftermarket adapters that convert the 7-way vehicle connector to the 5-prong trailer connector are not always compatible to the trailer light system. If the adapter is used you must test each connection coming out of the adapter to assure proper wiring diagram including the 5th wire disc brake wire.



PART # HYDRAULIC BRAKE ACTUATORS RETAIL $

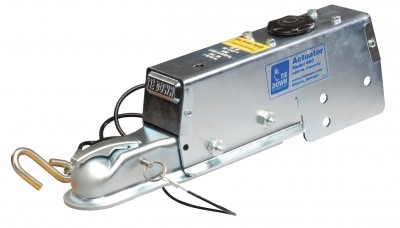

BA6600DIS 6,600 LB TIE-DOWN BRAKE ACTUATOR  #66 w/ SOLENOID   2" COUPLER $236.95

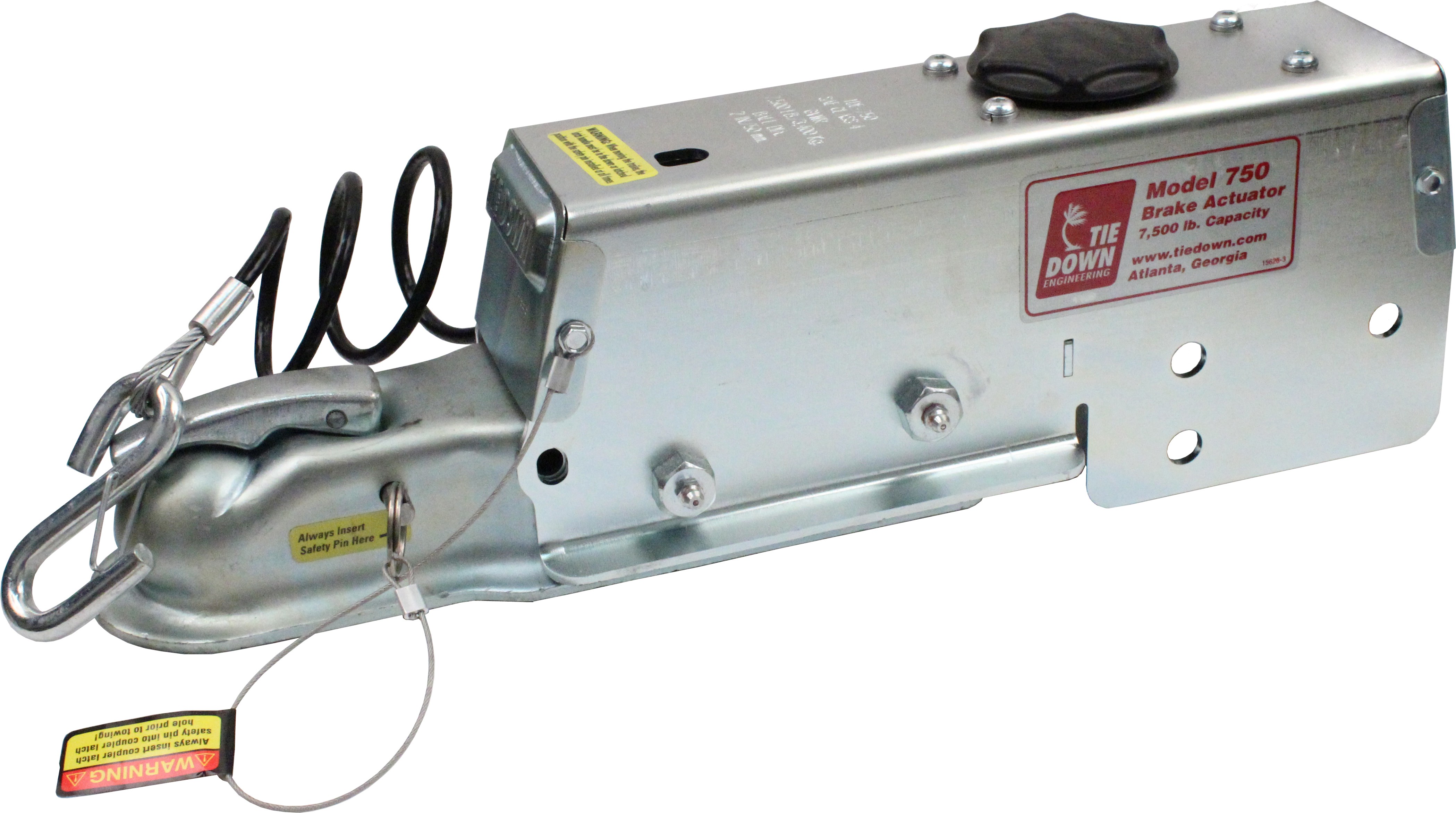

BA7000DI 7,500 LB TIE-DOWN BRAKE ACTUATOR #75 w/ SOLENOID   2" COUPLER $325.95
BA16500S 16,500 LB TIE-DOWN BRAKE ACTUATOR #16.5 w/ SOLENOID RAPTOR 2 5/16" COUPLER $645.95
BATD20000S 20,000 LB TIE-DOWN BRAKE ACTUATOR 20 w/ SOLENOID RAPTOR 2 5/16" COUPLER $745.95
CE6675 COVER EXTENSION (TO COVER BRAKE LINES BEHIND ACTUATORS) FOR #66 & #75 ACTUATORS $12.95
BATDCAPHS "HEX OLD STYLE" FILLER CAP FOR TIE DOWN BRAKE ACTUATOR #66 & #75 $8.95
BATDCAPFS "FLAT NEW STYLE" FILLER CAP FOR TIE DOWN BRAKE ACTUATOR #66 & #75 $10.95
BALP SAFETY CABLE WITH STAINLESS PIN FOR TIE DOWN BRAKE ACTUATOR $12.95
ESCTD EMERGENCY STOP CABLE (REQUIRES ACTUATOR SERIAL NUMBER FOR PROPER CABLE) $16.95

                            NOTE: PRICES SUBJECT TO CHANGE WITHOUT NOTICE
