RKAF

Aluminum Welded Flat Bottom Trailers
Spring Axles

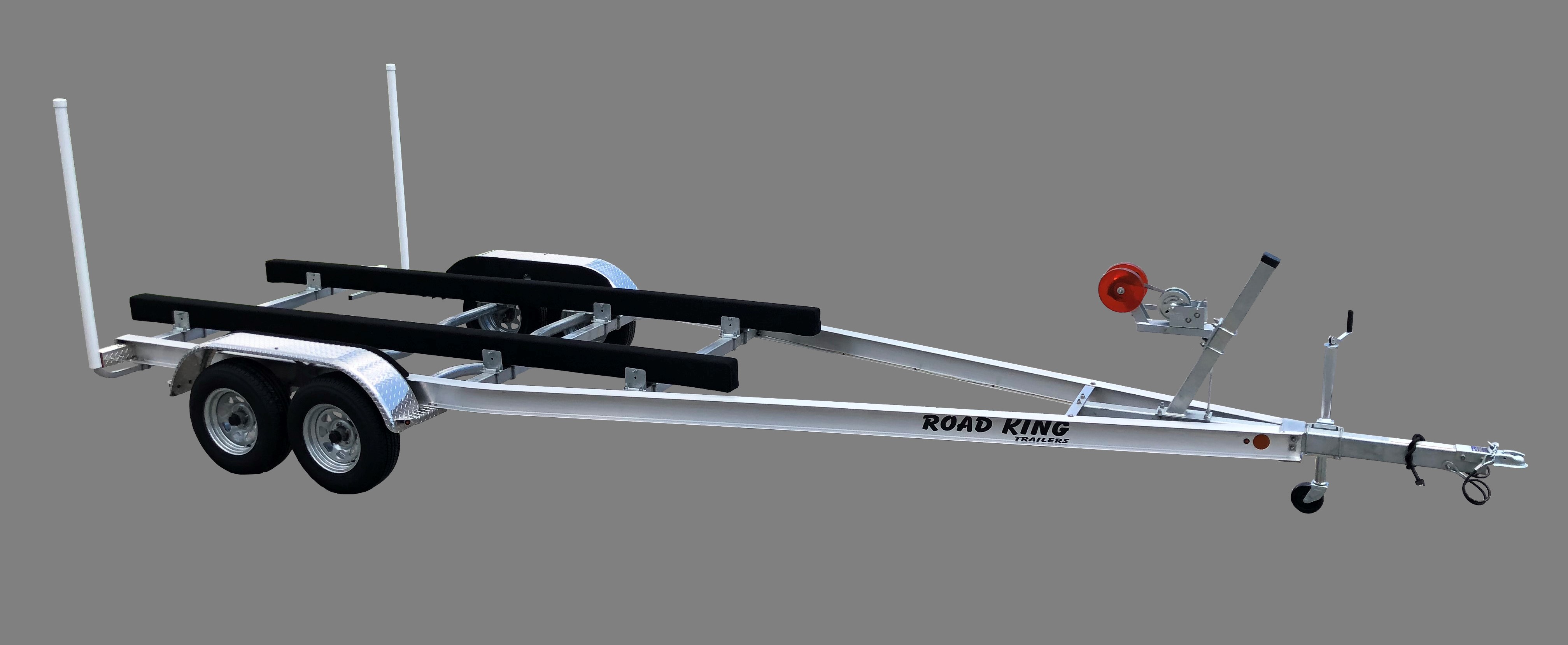

*Tandem Axle Model RKAF 22T (Shown With Optional 2 Piece Poly Bow Roller)*



Standard Features

*Spring Axle Suspension*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Welded Aluminum I-Beam Frame*
*Aluminum Tube Cross Members*
*Galvanized U-Bolts & Hardware*
*Galvanized Axles & Wheels*
*Galvanized PVC guides*
*LED Lights / Heat Shrink Connections*
*Aluminum Diamond Plate Fenders With Fender Boards*
*Adjustable 4X6 Carpeted Bunk Boards "Pressure Treated"*
*Tongue Jack & Wheel Through RKAF 21T / HD Tongue Jack & Wheel Above*
*Available Frame Widths: 60", 70", 80" & 84"*

Trailer Model Frame Size & C/M Number Tire Size GVW Net Carrying Capacity

RKAF-16 4.5 / 2 CM 175X13C 2700 LB 2200 LB
RKAF-16B 4.5 / 2 CM 175X13C 2700 LB 2200 LB
RKAF-16 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-16B 4.5 / 2 CM 205X13C 3500 LB 2900 LB

RKAF-17 4.5 / 2 CM 175X13C 2700 LB 2200 LB
RKAF-17B 4.5 / 2 CM 175X13C 2700 LB 2200 LB
RKAF-17B 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-17B 4.5 / 2 CM 205X14C 3500 LB 2900 LB

RKAF-18 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-18B 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-18 4.5 / 2 CM 215X14C 3700 LB 3100 LB
RKAF-18B 4.5 / 2 CM 215X14C 3700 LB 3100 LB

RKAF-19 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-19B 4.5 / 2 CM 205X14C 3500 LB 2900 LB
RKAF-19 4.5 / 2 CM 215X14C 3700 LB 3100 LB
RKAF-19B 4.5 / 2 CM 215X14C 3700 LB 3100 LB

RKAF-20 4.5 / 3 CM 205X14C 3500 LB 2900 LB
RKAF-20B 4.5 / 3 CM 205X14C 3500 LB 2900 LB
RKAF-20 4.5 / 5 CM 215X14C 3700 LB 3100 LB
RKAF-20B 4.5 / 3 CM 215X14C 3700 LB 3100 LB
RKAF-20T 4.5 / 3 CM 205X14C 3995 LB 3000 LB
RKAF-20TB 4.5 / 3 CM 205X14C 6000 LB 5000 LB

RKAF-21 4.5 / 3 CM 215X14C 3700 LB 3100 LB
RKAF-21B 4.5 / 3 CM 215X14C 3700 LB 3100 LB
RKAF-21T 4.5 / 3 CM 205X14C 3995 LB 3000 LB
RKAF-21TB 4.5 / 3 CM 205X14C 6000 LB 5000 LB

RKAF-22 5.5 / 3 CM 215X14C 3700 LB 3000 LB
RKAF-22B 5.5 / 3 CM 215X14C 3700 LB 3000 LB
RKAF-22T 5.5 / 3 CM 205X14C 3995 LB 3000 LB
RKAF-22TB 5.5 / 3 CM 205X14C 7000 LB 5900 LB

RKAF-24T 5.5 / 3 CM 205X14C 3995 LB 3000 LB
RKAF-24TB 5.5 / 3 CM 205X14C 7000 LB 5800 LB

RKAF-26T 6.5 / 3 CM 205X14C 3995 LB 3000 LB
RKAF-26TB 6.5 / 3 CM 205X14C 7000 LB 5600 LB
T= Tandem Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.
NOTE:  84" frame width are over 102" width and may require an "over width" permit in your state.



Optional Equipment & Upgrades

*Torsion "V" Axles With Vortex Hubs*
*Stainless U-Bolt Upgrade*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
*3' Upright Winch Stand Bow Boards*
*Double 9" or Triple 9" Poly Bow Roller Exchange for Skiff Boats*
