GUT


Galvanized Utility Trailers

GUT Models Available In:
5X8
5X10
6X10
6X12
78X12
78X14


*Single Axle Model GUT 5X10*




*14" Tires & Wheels*

*Tie Down Hooks*


*Pin, Clip and Cable*

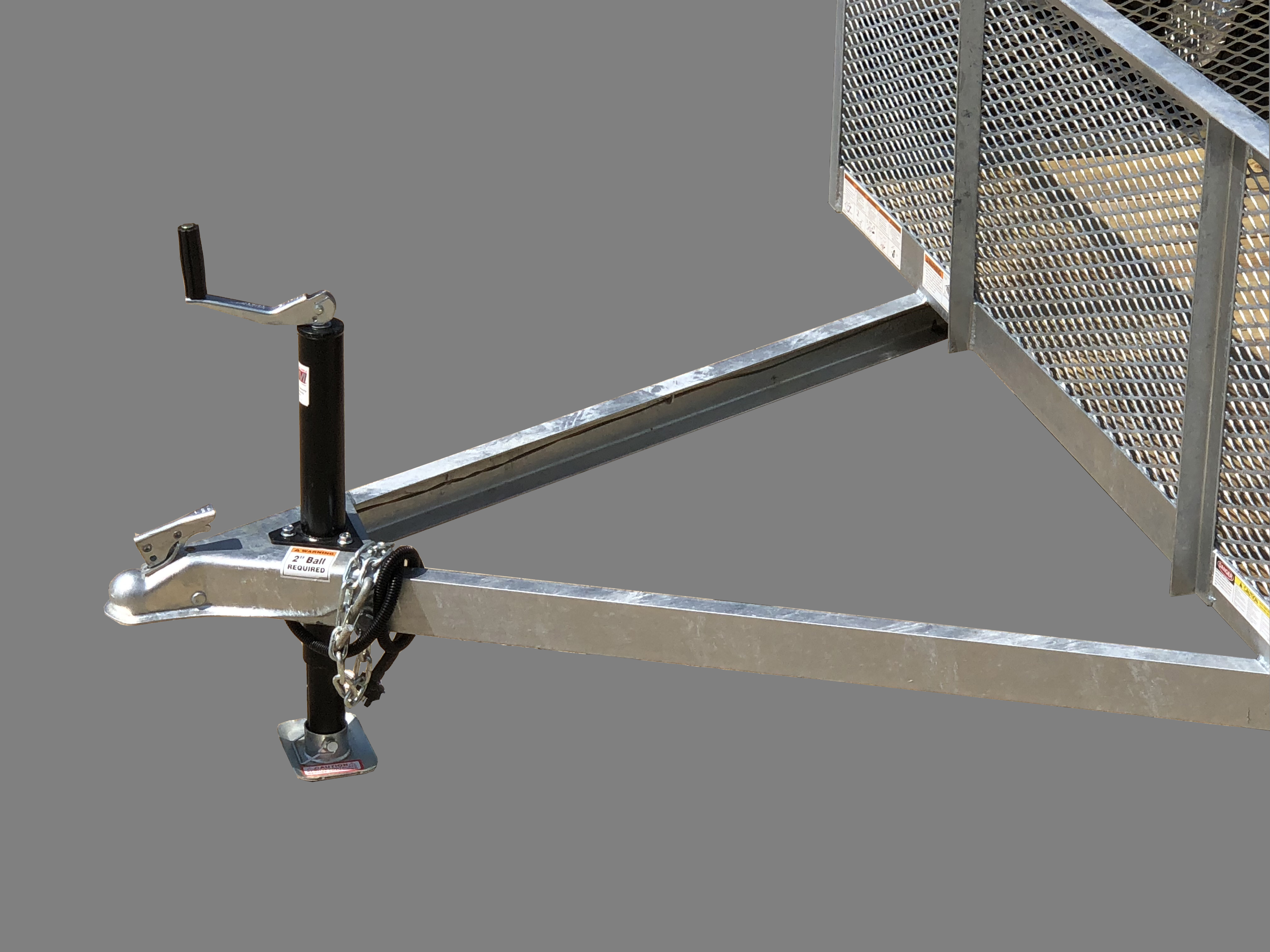

*A-Frame Tongue & Jack*




Standard Features

*Galvanized Frame, Axles & Springs*
*3500 LB Super Lube Spring Axles*
*A-Frame Tongue*
*Mesh Gate (Removable)*
*Lumber Cap at Rear of Trailer*
*A-Frame Jack & Foot*
*DOT Lighting*

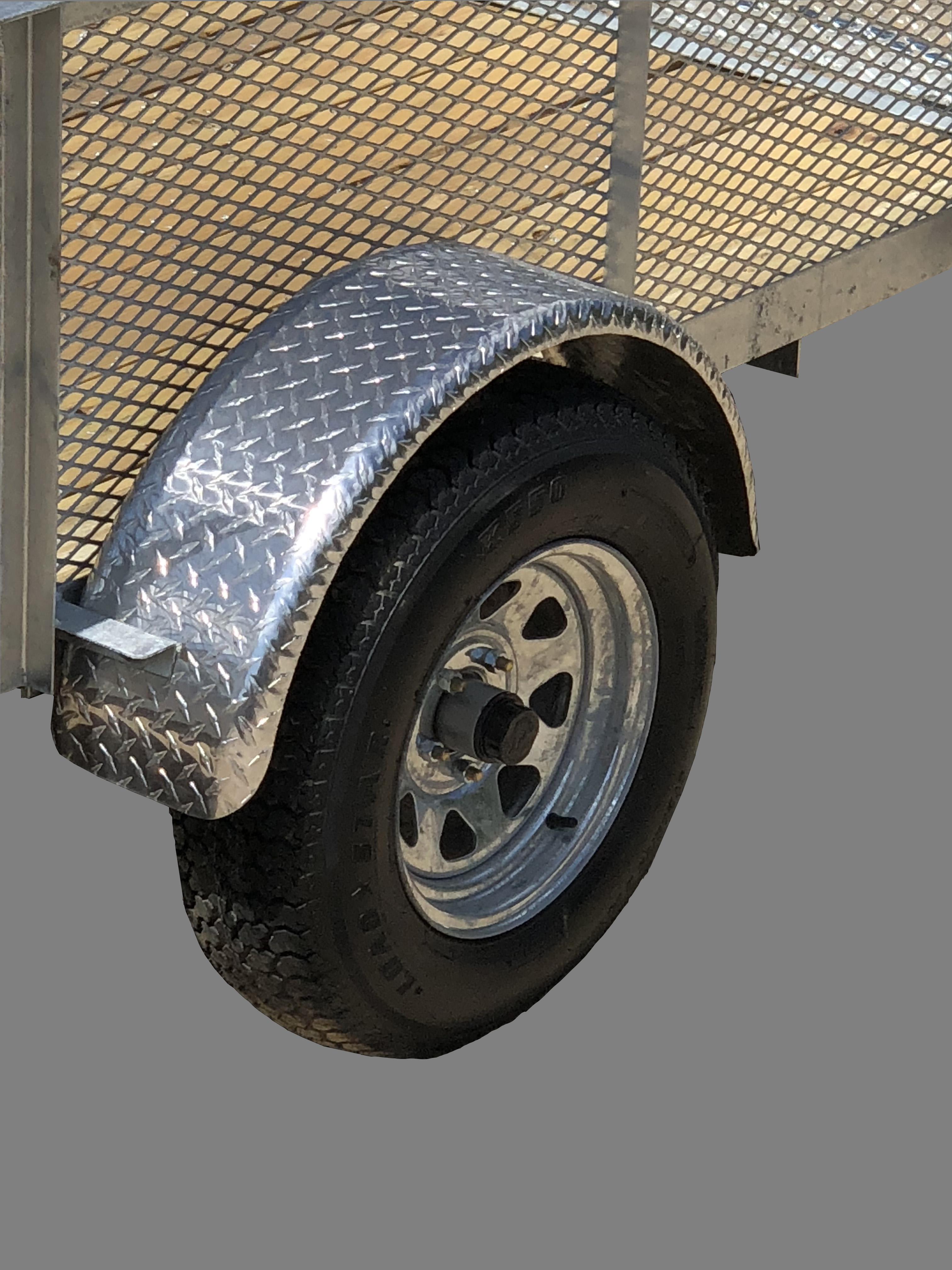

*Bolt On Aluminum Fenders*
*2X8 Pressure Treated Flooring*
*Welded Tie Downs In Each Corner*

Trailer Model Width & Length Main Frame Tire Size GVW Net Capacity Angle Sides
Gate
GUT 5X8 60" x 8' 2X3 Angle 205X14C 2995 LB 2400 LB 12" Open 4' Tall Mesh
GUT 5X8M1 60" x 8' 2X3 Angle 205X14C 2995 LB 2300 LB 12" Mesh 4' Tall Mesh
GUT 5X8M2 60" x 8' 2X3 Angle 205X14C 2995 LB 2200 LB 24" Mesh 4' Tall Mesh
GUT 5X10 60" x 10' 2X3 Angle 205X14C 2995 LB 2300 LB 12" Open 4' Tall Mesh
GUT 5X10M1 60" x 10' 2X3 Angle 205X14C 2995 LB 2200 LB 12" Mesh 4' Tall Mesh
GUT 5X10M2 60" x 10' 2X3 Angle 205X14C 2995 LB 2100 LB 24" Mesh 4' Tall Mesh
GUT 6X10 72" x 10' 2X3 Angle 205X14C 2995 LB 2200 LB 12" Open 4' Tall Mesh
GUT 6X10M1 72" x 10' 2X3 Angle 205X14C 2995 LB 2100 LB 12" Mesh 4' Tall Mesh
GUT 6X10M2 72" x 10' 2X3 Angle 205X14C 2995 LB 2000 LB 24" Mesh 4' Tall Mesh
GUT 6X12 72" x 12' 2X3 Angle 205X14C 2995 LB 2100 LB 12" Open 4' Tall Mesh
GUT 6X12M1 72" x 12' 2X3 Angle 205X14C 2995 LB 2000 LB 12" Mesh 4' Tall Mesh
GUT 6X12M2 72" x 12' 2X3 Angle 205X14C 2995 LB 1900 LB 24" Mesh 4' Tall Mesh
GUT 78X12 78" x 12' 2X3 Angle 205X14C 2995 LB 2100 LB 12" Open 4' Tall Mesh
GUT 78X12M1 78" x 12' 2X3 Angle 205X14C 2995 LB 2000 LB 12" Mesh 4' Tall Mesh
GUT 78X12M2 78" x 12' 2X3 Angle 205X14C 2995 LB 1900 LB 24" Mesh 4' Tall Mesh
GUT 78X12T 78" x 12' 2X3 Angle 205X14C 2995 LB 2000 LB 12" Open 4' Tall Mesh
GUT 78X12TM1 78" x 12' 2X3 Angle 205X14C 2995 LB 1900 LB 12" Mesh 4' Tall Mesh
GUT 78X12TM2 78" x 12' 2X3 Angle 205X14C 2995 LB 1800 LB 24" Mesh 4' Tall Mesh
GUT 78X14 78" x 14' 2X3 Angle 205X14C 2995 LB 2000 LB 12" Open 4' Tall Mesh
GUT 78X14M1 78" x 14' 2X3 Angle 205X14C 2995 LB 1900 LB 12" Mesh 4' Tall Mesh
GUT 78X14M2 78" x 14' 2X3 Angle 205X14C 2995 LB 1800 LB 24" Mesh 4' Tall Mesh
GUT 78X14T 78" x 14' 2X3 Angle 205X14C 2995 LB 2000 LB 12" Open 4' Tall Mesh
GUT 78X14TM1 78" x 14' 2X3 Angle 205X14C 2995 LB 1900 LB 12" Mesh 4' Tall Mesh
GUT 78X14TM2 78" x 14' 2X3 Angle 205X14C 2995 LB 1800 LB 24" Mesh 4' Tall Mesh
T=Tandem Axle, B=Includes Drum Brake
Brake Models Include 1 Axle Electric Brakes, 7 Way Plug & Break-Away Cable & Battery Box.
Note: Brakes are required on trailers in accordance to each states brake laws.
Due to the nature of the galvanize process, we cannot guarantee perfect coating or siderails.



Optional Equipment & Upgrades

*Upgrade to LED Lights*
*"Balanced" Radial Tire Upgrade*
*Aluminum Rim Upgrade*
*Welded on Side Spare Tire Mount*
*Spare Tire & Wheel*
*Mesh With Bracing Under Channel In Tongue*
*Split Rear Tail Gate*
*Side 5' Tall x 4' Wide Tube Mesh Side Gate*
*Add Electric Brakes*
