"QUALITY COSTS MORE TO MANUFACTURER. WE WOULD RATHER EXPLAIN THE QUALITY THAT IS BUILT INTO OUR PRODUCT THAN APOLOGIZE FOR IT'S ABSENCE."

RKABF

ALUMINUM POWERBOAT TRAILERS
FOR V-BOTTOM, BAY, AND FLAT BOATS

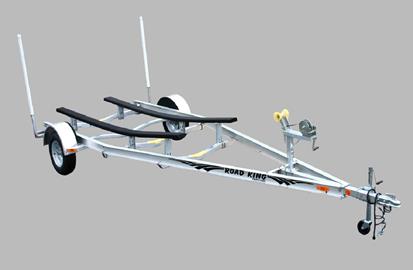

*SINGLE AXLE MODEL RKABF 18-19*
*(SHOWN WITH OPTIONAL TORSION AXLE)*

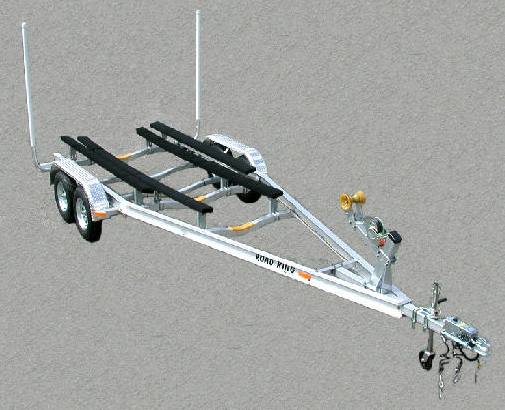

*TANDEM AXLE MODEL RKABF 19-20TB*
*(SHOWN WITH OPTIONAL TORSIONAL AXLE AND DOUBLE BUNKS)*

*TANDEM AXLE MODEL RKABF 20-21TB*
*(SHOWN WITH SPRING AXLES AND OPTIONAL DOUBLE BUNKS)*

RKABF STANDARD FEATURES

*SPRING AXLE SUSPENSION STANDARD ON ALL TRAILERS*
*ALUMINUM I-BEAM FRAME*
*ALUMINUM "V" CROSSMEMBERS*
*ALL STAINLESS STEEL FRAME FASTENERS*
*GALVANIZED HARDWARE & U-BOLTS*
*GALVANIZED AXLES & WHEELS*
*SUPER LUBE HUBS*
*ALUMINUM DIAMOND PLATE FENDERS*
*CARPETED FENDER BOARDS*
*FULL LENGTH ADJUSTABLE CARPETED 2X6 BUNK BOARDS*
*GALVANIZED PVC GUIDES*
*LED LIGHTING*
*TONGUE JACK & WHEEL*


Trailer Model Frame Width & Size Tire Size GVW Net Carrying Capacity
RKABF 14-15 70" or 80" / 4.5 205X14C 3500 LB 3000 LB
RKABF 14-15B 70" or 80" / 4.5 205X14C 3500 LB 3000 LB
RKABF 15-16 70" or 80" / 4.5 205X14C 3500 LB 3000 LB
RKABF 15-16B 70" or 80" / 4.5 205X14C 3500 LB 3000 LB
RKABF 16-17 70" or 80" / 4.5 205X14C 3500 LB 2900 LB
RKABF 16-17B 70" or 80" / 4.5 205X14C 3500 LB 2900 LB
RKABF 16-17 80" or 84" / 4.5 215X14C 3700 LB 3100 LB
RKABF 16-17B 80" or 84" / 4.5 215X14C 3700 LB 3100 LB
RKABF 17-18 80" or 84" / 4.5 205X14C 3500 LB 2900 LB
RKABF 17-18B 80" or 84" / 4.5 205X14C 3500 LB 2900 LB
RKABF 17-18 80" or 84" / 4.5 215X14C 3700 LB 3100 LB
RKABF 17-18B 80" or 84" / 4.5 215X14C 3700 LB 3100 LB
RKABF 18-19 80" or 84" / 4.5 205X14C 3500 LB 2850 LB
RKABF 18-19B 80" or 84" / 4.5 205X14C 3500 LB 2850 LB
RKABF 18-19 80" or 84" / 4.5 215X14C 3700 LB 3050 LB
RKABF 18-19B 80" or 84" / 4.5 215X14C 3700 LB 3050 LB
RKABF 19-20 80" or 84" / 4.5 215X14C 3700 LB 3050 LB
RKABF 19-20B 80" or 84" / 4.5 215X14C 3700 LB 3050 LB
RKABF 19-20T 80" or 84" / 4.5 205X14C 3995 LB 3000 LB
RKABF 19-20TB 80" or 84" / 4.5 205X14C 6000 LB 5000 LB
RKABF 20-21 80" or 84" / 5.5 215X14C 3700 LB 3000 LB
RKABF 20-21B 80" or 84" / 5.5 215X14C 3700 LB 3000 LB
RKABF 20-21T 80" or 84" / 5.5 205X14C 3995 LB 3000 LB
RKABF 20-21TB 80" or 84" / 5.5 205X14C 7000 LB 5800 LB
RKABF 21-22 80" or 84" / 5.5 215X14C 3700 LB 2950 LB
RKABF 21-22B 80" or 84" / 5.5 215X14C 3700 LB 2950 LB
RKABF 21-22TB 80" or 84" / 5.5 205X14C 7000 LB 5700 LB
RKABF 22-23TB 80" or 84" / 5.5 205X14C 7000 LB 5600 LB
RKABF 23-24TB 80" or 84" / 5.5 205X14C 7000 LB 5500 LB

T= Tandem Axle    B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.  Road King Trailers recommends brakes on all wheels.


RKABF OPTIONAL FEATURES

*STAINLESS U-BOLT UPGRADE*
*SIDE SPARE TIRE CARRIER*
*SIDE "HUB" SPARE TIRE CARRIER*
*SPARE TIRE AND WHEEL*
*"BALANCED" RADIAL TIRE UPGRADE (13", 14")*
*ALUMINUM RIM & "BALANCED" RADIAL TIRE UPGRADE*
*ALUMINUM RIM & BIAS TIRE UPGRADE*
*SWING TONGUE UP TO 7000 LB GVW*
*"VORTEX" TORSION AXLE UPGRADE*
*ADDITIONAL SET OF 2X6 BUNKS (FOR 2 OR 3 CROSSMEMBER)*
*EXCHANGE CARPET TO 2X4 POLY BUNK SKID*
*EXCHANGE CARPET TO 2x6 POLY BUNK SKID*
*WELDED REAR 12" ROLLER*
