"QUALITY COSTS MORE TO MANUFACTURER. WE WOULD RATHER EXPLAIN THE QUALITY THAT IS BUILT INTO OUR PRODUCT THAN APOLOGIZE FOR IT'S ABSENCE."

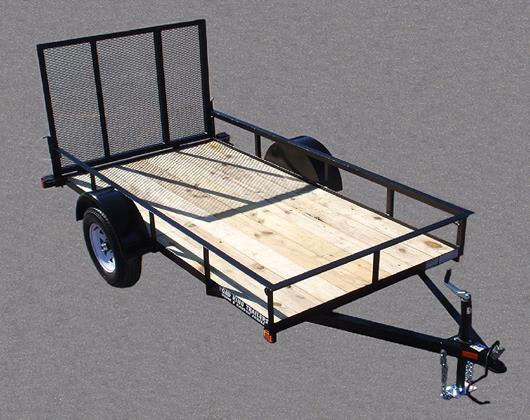

PUT

PAINTED UTILITY SERIES




*MODEL PUT 5 X 10*


*TIE DOWN HOOKS*

*A-FRAME TONGUE*

*PIN, CLIP AND CABLE*

*15 INCH TIRE AND WHEELS*





PUT STANDARD FEATURES

*BLACK PAINTED FRAME, AXLE & SPRINGS*
*3500 LB SUPER LUBE AXLES*
*A-FRAME TONGUE*
*MESH GATE (REMOVEABLE)*
*LUMBER CAP AT REAR OF TRAILER*
*A-FRAME JACK & FOOT*
*DOT LIGHTING*
*FENDERS WITH INSIDE SPLASH PAN*
*2X8 PRESSURE TREATED FLOORING*
*WELDED TIE DOWNS IN EACH CORNER*



Trailer Model Width & Length Main Frame Tire Size GVW Net Capacity Angle Sides Gate
PUT 5X8 60" x 8' 2X3 Angle 205X15C 2995 LB 2400 LB 12" Open 4' Tall Mesh
PUT 5X8M1 60" x 8' 2X3 Angle 205X15C 2995 LB 2300 LB 12" Mesh 4' Tall Mesh
PUT 5X8M2 60" x 8' 2X3 Angle 205X15C 2995 LB 2200 LB 24" Mesh 4' Tall Mesh
PUT 5X10 60" x 10' 2X3 Angle 205X15C 2995 LB 2300 LB 12" Open 4' Tall Mesh
PUT 5X10M1 60" x 10' 2X3 Angle 205X15C 2995 LB 2200 LB 12" Mesh 4' Tall Mesh
PUT 5X10M2 60" x 10' 2X3 Angle 205X15C 2995 LB 2100 LB 24" Mesh 4' Tall Mesh
PUT 6X10 72" x 10' 2X3 Angle 205X15C 2995 LB 2200 LB 12" Open 4' Tall Mesh
PUT 6X10M1 72" x 10' 2X3 Angle 205X15C 2995 LB 2100 LB 12" Mesh 4' Tall Mesh
PUT 6X10M2 72" x 10' 2X3 Angle 205X15C 2995 LB 2000 LB 24" Mesh 4' Tall Mesh
PUT 6X12 72" x 12' 2X3 Angle 205X15C 2995 LB 2100 LB 12" Open 4' Tall Mesh
PUT 6X12M1 72" x 12' 2X3 Angle 205X15C 2995 LB 2000 LB 12" Mesh 4' Tall Mesh
PUT 6X12M2 72" x 12' 2X3 Angle 205X15C 2995 LB 1900 LB 24" Mesh 4' Tall Mesh
PUT 78X12 78" x 12' 2X3 Angle 205X15C 2995 LB 2100 LB 12" Open 4' Tall Mesh
PUT 78X12M1 78" x 12' 2X3 Angle 205X15C 2995 LB 2000 LB 12" Mesh 4' Tall Mesh
PUT 78X12M2 78" x 12' 2X3 Angle 205X15C 2995 LB 1900 LB 24" Mesh 4' Tall Mesh
PUT 78X14 78" x 14' 2X3 Angle 205X15C 2995 LB 2000 LB 12" Open 4' Tall Mesh
PUT 78X14M1 78" x 14' 2X3 Angle 205X15C 2995 LB 1900 LB 12" Mesh 4' Tall Mesh
PUT 78X14M2 78" x 14' 2X3 Angle 205X15C 2995 LB 1800 LB 24" Mesh 4' Tall Mesh
T=Tandem Axle, B=Includes Drum Brake
BRAKE MODELS INCLUDE 1 AXLE ELECTRIC BRAKES, 7 WAY PLUG & BREAK-AWAY CABLE & BATTERY BOX
Note: Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.


PUT OPTIONAL FEATURES

*SPARE TIRE AND WHEEL*
*UPGRADE FROM BIAS TO "BALANCED" RADIAL TIRES*
*WELDED ON SIDE SPARE TIRE MOUNT*
*UPGRADE FROM STANDARD LIGHTS TO LED LIGHTS*
*MESH WITH BRACING UNDER CHANNEL IN TONGUE*
*SIDE 5' TALL X 4' WIDE TUBE MESH GATE*
*ADD ELECTRIC BRAKES TO TRAILER*
