"QUALITY COSTS MORE TO MANUFACTURER. WE WOULD RATHER EXPLAIN THE QUALITY THAT IS BUILT INTO OUR PRODUCT THAN APOLOGIZE FOR IT'S ABSENCE."

PDT

PAINTED DOVETAIL SERIES

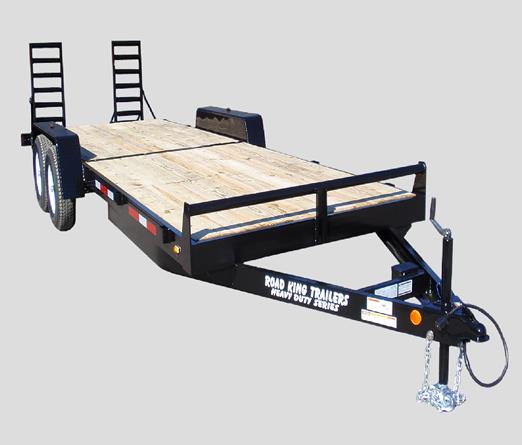

*MODEL PDT10K-20TB*


*REAR LIGHT PROTECTORS*

*SIDE POCKETS*

*REAR RAMPS*

*DIAMOND PLATE FENDERS ON 5200 LB & LARGER AXLE*


PDT STANDARD FEATURES

*BLACK PAINTED FRAME, AXLE & SPRINGS*
*4' X 18" RAMPS (REMOVEABLE)*
*ANGLE MUD STRIPPERS ON REAR DOVETAIL SECTION*
*TONGUE JACK WITH FOOT*
*DOT LIGHTS WITH REAR LIGHT PROTECTORS*
*ALL WHEEL ELECTRIC BRAKES WITH BREAKAWAY*
*FENDERS WITH INSIDE SPLASH PAN*
*2X8 PRESSURE TREATED DECKING*
*WELDED STAKE POCKETS EACH SIDE*
*EZ-LUBE HUBS*
*FRONT STOP / BUMP BAR*



Trailer Model Width & Length Main Frame Tire Size Ball Size GVW Net Capacity Axle Size
PDT7K-16TB 82" X 16' 5" CHANNEL 205X15C 2 5/16" 7000 LB 5000 LB 3500 / 5 LUG
PDT10K-16TB 82" X 16' 6" CHANNEL 225X15D 2 5/16" 9990 LB 7900 LB 5200 / 6 LUG
PDT12K-16TB 82" X 16' 6" CHANNEL 235X16E Radial 2 5/16" 12000 LB 9800 LB 6000 / 8 LUG
PDT14K-16TB 82" X 16' 6" CHANNEL 235X16E Radial ADJ 2 5/16" 14000 LB 11600 LB 7000 / 8 LUG
PDT7K-18TB 82" X 18' 5" CHANNEL 205X15C 2 5/16" 7000 LB 4850 LB 3500 / 5 LUG
PDT10K-18TB 82" X 18' 6" CHANNEL 225X15D 2 5/16" 9990 LB 7750 LB 5200 / 6 LUG
PDT12K-18TB 82" X 18' 6" CHANNEL 235X16E Radial 2 5/16" 12000 LB 9650 LB 6000 / 8 LUG
PDT14K-18TB 82" X 18' 6" CHANNEL 235X16E Radial ADJ 2 5/16" 14000 LB 11450 LB 7000 / 8 LUG
PDT10K-20TB 82" X 20' 6" CHANNEL 225X15D 2 5/16" 9990 LB 7500 LB 5200 / 6 LUG
PDT12K-20TB 82" X 20' 6" CHANNEL 235X16E Radial 2 5/16" 12000 LB 9400 LB 6000 / 8 LUG
PDT14K-20TB 82" X 20' 6" CHANNEL 235X16E Radial ADJ 2 5/16" 14000 LB 11200 LB 7000 / 8 LUG
T=Tandem Axle, B=Includes Drum Brake
Adjustable couplers come with 2 5/16" coupler or pintel ring
"B" BRAKE MODELS INCLUDE ELECTRIC BRAKES, 7 WAY PLUG & BREAK-AWAY CABLE & BATTERY BOX
Note: Brakes are required on trailers in accordance to each states brake laws.

PDO OPTIONAL FEATURES

*SPARE TIRE AND WHEEL*
*UPGRADE FROM BIAS TO "BALANCED" RADIAL TIRES*
*WELDED ON SIDE SPARE TIRE MOUNT*
*UPGRADE FROM STANDARD LIGHTS TO LED LIGHTS*
*MESH WITH BRACING UNDER CHANNEL IN TONGUE*
*UPGRADE TO WELDED CHANNEL WITH ADJUSTABLE 2 5/16" COUPLER*
*UPGRADE TO WELDED CHANNEL WITH ADJUSTABLE PINTLE RING*
*EXTRA D-RINGS WELDED ON FRAME*
